Features
Low insertion loss
Alignment achieved with high precision guide pins
Various fiber and cables are available
Qualified with CE and RoHS certification
Applications

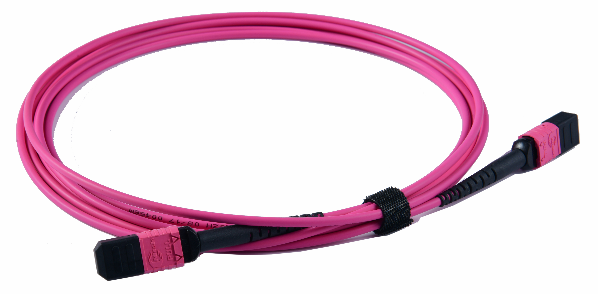

Array trunk cables

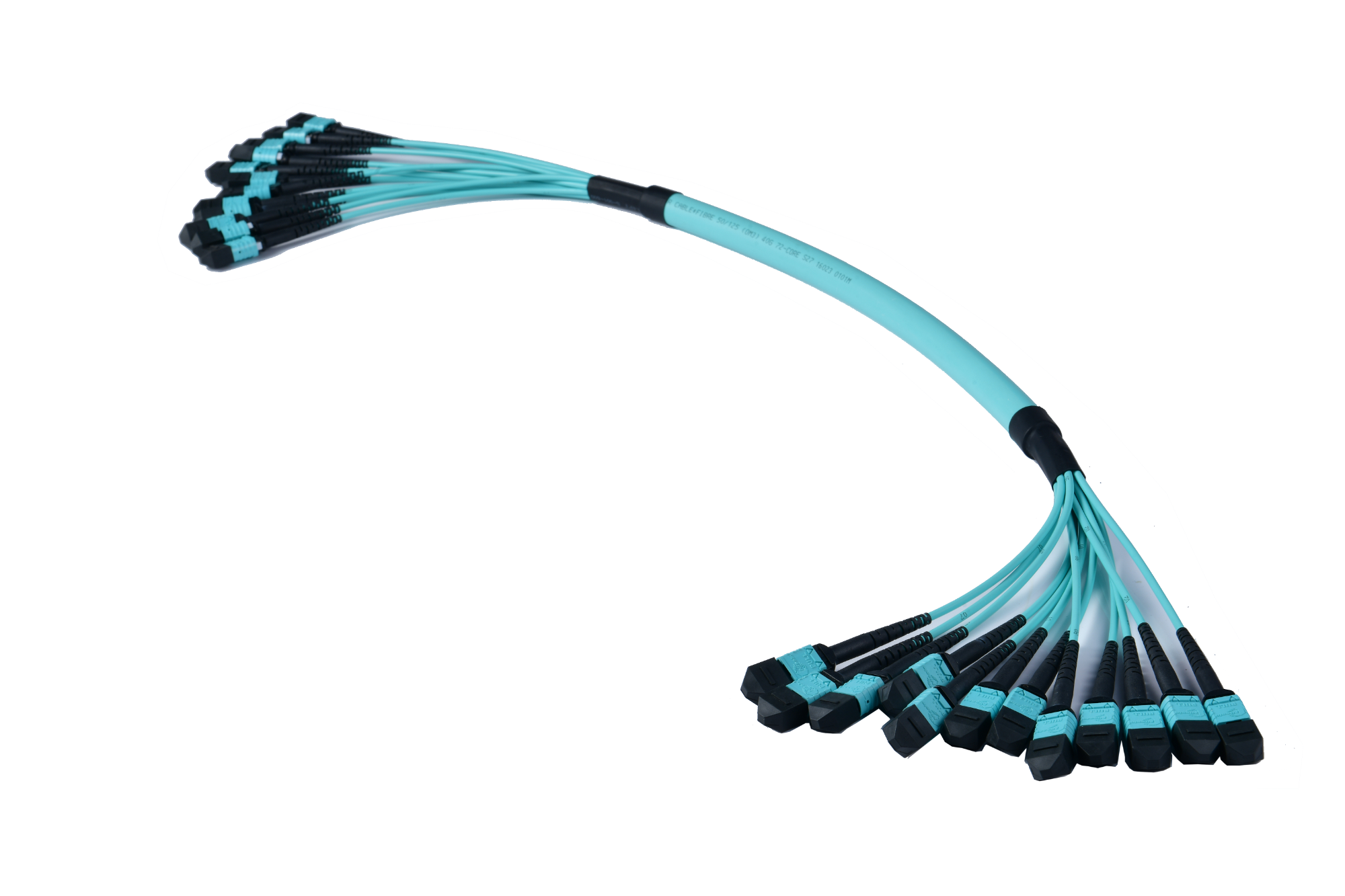

Array fiber to single fiber fan-outs and cassettes
High fiber density card edge access
Optical switching inter-frame connections
Specifications
|
Item |
Parameter |
|
Connector Type |
MPO/MTP (male, female) |
|
Cable Type |
G652D, G657A1, G657A2, OM3, OM4, etc |
|
Cable count |
8,12, 24, etc |
|
Cable Diameter |
3.0mm, etc |
|
Material |
LSZH, OFNR, OFNP |
|
Color |
Yellow, Orange, Aqua |
|
Cable Loss |
@850nm 3.5dB/km @1300nm 1.5dB/km |
|
IL |
MM: ≤0.6dB, SM:≤0.75dB |
|
RL |
MM:≥30dB, SM:≥50dB(PC), ≥60dB(APC) |
