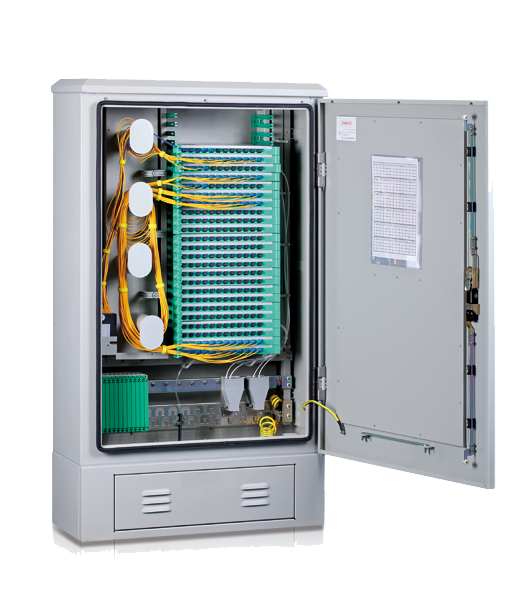

OCC

Features

Strong enclosure structure assures reliable exterior protection performance, adopt SMC material, remarkable anti-corrosion and aging resistance abilities.

Enclosure is highly heat insulated and effectively prevents precipitation.

Door applies a 3-point lock structure and is highly theft-proof performance.

Tight seal cabinet structure effectively prevents all kinds of strange objects from entering the enclosure.

Modular design, makes system expansion and installation easy.

Adapter's slant position，not only guarantees the pigtail's curvature radius, it can also prevent the strong beam hurting the eyes.

Connected ports fit FC, SC, ST various adaptors' installation and for both ribbon and non-ribbon type optical cable.

Application

FTTH

CATV

Performance

Standard operating wavelength: 850nm, 1310nm, 1550nm.

IL: ≤ 0.2dB.

RL: FC/PC≥50dB   FC/UPC≥50dB   FC/APC≥60dB.

Connector service life: After 1000 mating, the insertion loss variation ＜0.1 dB.

Cabinet high voltage protection and earthing, insulation resistance> 1000MΩ/500V (DC).

High voltage protection between the cabinet and earth with resistance > 3000V (DC) / 5s without break through and flash over.
