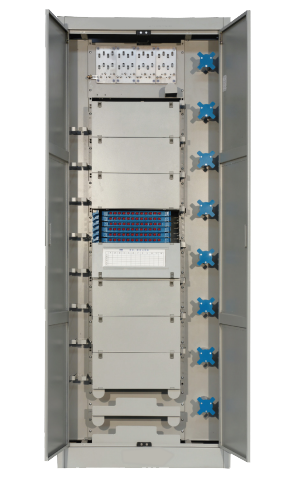

ODF Cabinet

Feature

The frame is bent with quality cold-rolled steel plate for high mechanical strength and in electrostatic epoxy plastic spray mold for beautiful appearance.

High density, compact structure, 19” standard installation.

Adopt up& bottom cable entering, enough space for fiber storage.

Equipped with 12core splice distribution module，apply for FC, SC, LC, ST adapters (ST adapter must be with flange ).

Suits both ribbon optical cable and non-ribbon optical cable operation.

Reliable optical cable leading-in, fixation, skinning protection and earthing device.

Dimension

 H*W*D 2000*840*300±3mm

 H*W*D 2200*840*300±3mm

 H*W*D 2400*840*300±3mm

Performance

Insulation resistance between the frame high-voltage protection earthing device and the frame: 2X104MΩ/500V(DC)

Withstand voltage between the frame high-voltage protection earthing device and the frame ≥3000V(DC)/1min, no spark-through, no flashover.

IL: ≤0.3dB.

RL: APC type ≥60dB，UPC type ≥50dB，PC type ≥45dB.
